Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2812 |

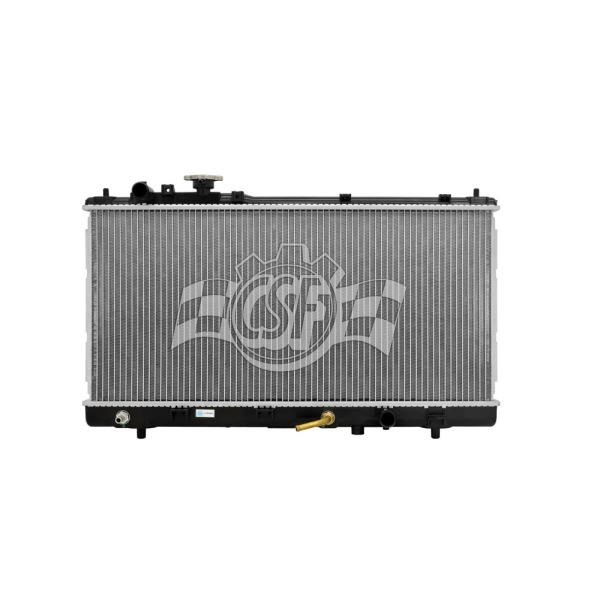

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/8 Right |
| Box Height (in) | 4 14/16 |
| Box Length (in) | 29 7/8 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 3/16 |
| Core Length | 12 15/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 27 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 27 13/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353028124 |
| OE Part Number | 2303, 2302, 2447, 2446, ZM39-15-200, B35S-15-200, 221-3506, 221-3504, FS7P-15-200 A, 8012446, ZM02-15-200, 8012302, 8012447, FS8M-15-200 A, ZL01-15-200 A, ZM43-15-200, CU2303, ZL33-15-200, 8012303 |
| Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 27 13/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1999-2000 Mazda Protege | All Trims | 4 Cyl 1.8L |
| 1999-2001 Mazda Protege | All Trims | 4 Cyl 1.6L |
| 2001-2003 Mazda Protege | All Trims | 4 Cyl 2.0L |
| 2002-2003 Mazda Protege5 | All Trims | 4 Cyl 2.0L |
