Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2813 |

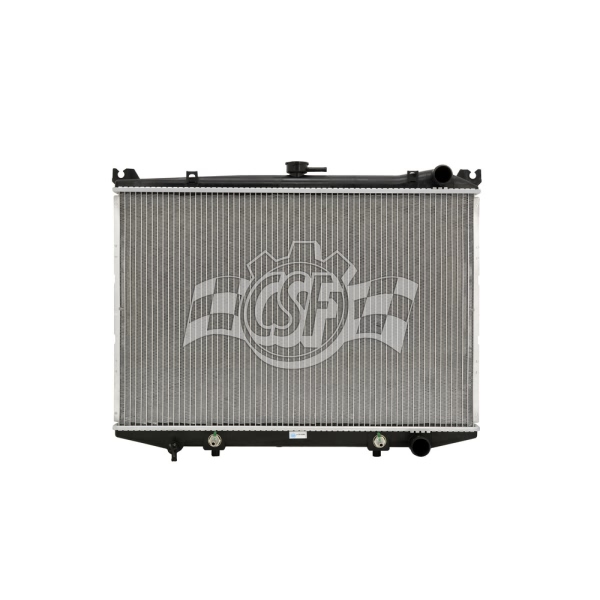

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 7/16 Right |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 28 11/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 24 1/8 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 25 1/2 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 26 1/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353028131 |
| OE Part Number | 21410-57G00, CU314, 21400-01G12, 21450-01G11, 21400-01G11, 21400-01G10, 8010145, 21460-57G00, 21450-01G10, 8010314, 21410-73P00 |
| Oil Cooler (in) | 11 13/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 26 1/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1986-1994 Nissan D21 | All Trims | 4 Cyl 2.4L |
| 1987-1988 Nissan Pathfinder | All Trims | 4 Cyl 2.4L |
| 1987-1995 Nissan Pathfinder | All Trims | 6 Cyl 3.0L |
| 1995-1997 Nissan Pickup | All Trims | 4 Cyl 2.4L |
