Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2817 |

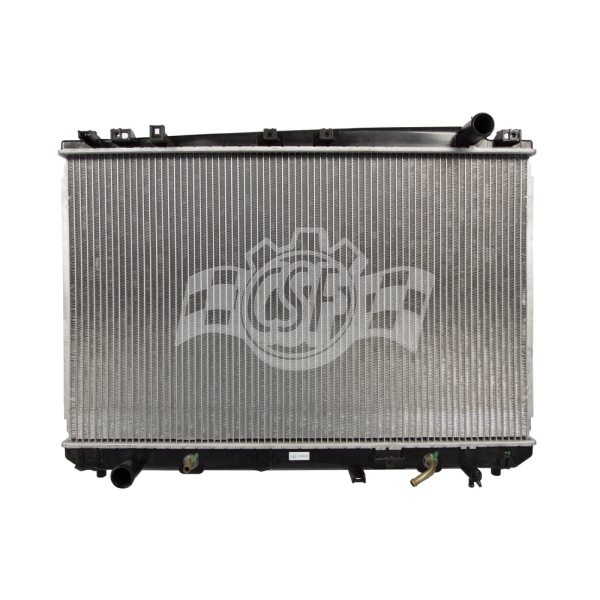

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 31 1/4 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 23 15/16 |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 28 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 29 3/16 |
| Inlet Width (in) | 1 13/16 |
| No. Of Rows | 1 |
| UPC | 710353028179 |
| OE Part Number | 2153, 16400-0A210, 16400-0A071, 8012427, 2427, 221-3101, CU2153, CU2427, 8012153 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 29 3/16 |
| Outlet Width | 1 13/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2003 Toyota Sienna | All Trims | 6 Cyl 3.0L |
