Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2824 |

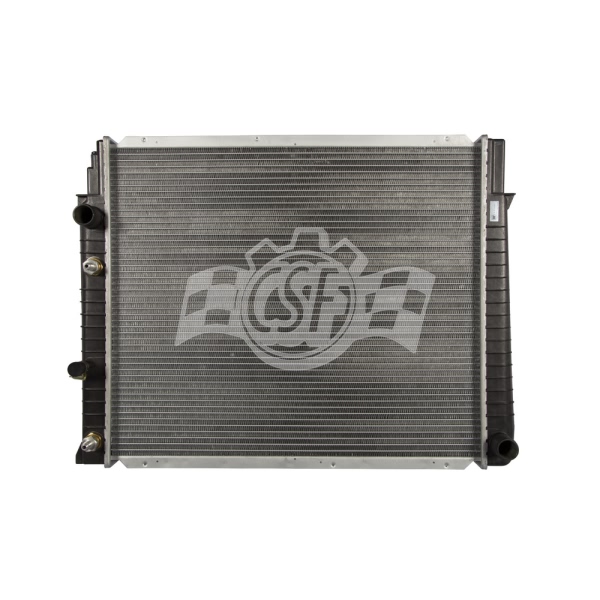

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 6 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 24 |
| Core Length | 23 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 5/16 |
| Core Width | 19 7/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 20 1/2 |
| Inlet Width (in) | 1 3/4 |
| No. Of Rows | 1 |
| UPC | 710353028247 |
| OE Part Number | 1871, 8011738, 1738, 8603853, CU1871, 8603739-7, CU1738 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 20 1/2 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style plastic tanks & Aluminum core; Multifit model supplied with O.C. let adaptors. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1991-1995 Volvo 940 | All Trims | 4 Cyl 2.3L |
| 1992-1997 Volvo 960 | All Trims | 6 Cyl 2.9L |
| 1998 Volvo S90 | All Trims | 6 Cyl 2.9L |
| 1998 Volvo V90 | All Trims | 6 Cyl 2.9L |
