Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2833 |

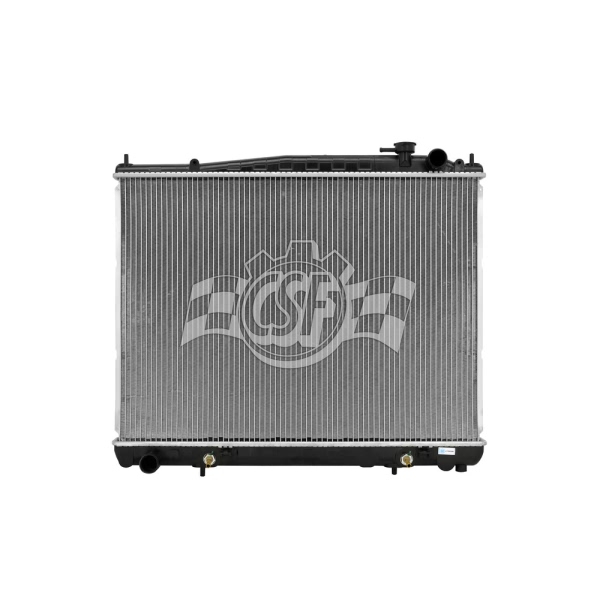

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 7/16 Left |
| Box Height (in) | 4 14/16 |
| Box Length (in) | 29 7/8 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 26 11/16 |
| Core Length | 19 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 27 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 27 13/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353028339 |
| OE Part Number | 21460-4W017, 8012459, 221-3420, CU2459, 2459 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 27 13/16 |
| Outlet Width | 2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 7/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2003 Infiniti QX4 | All Trims | 6 Cyl 3.5L |
| 2001-2004 Nissan Pathfinder | All Trims | 6 Cyl 3.5L |
