Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2919 |

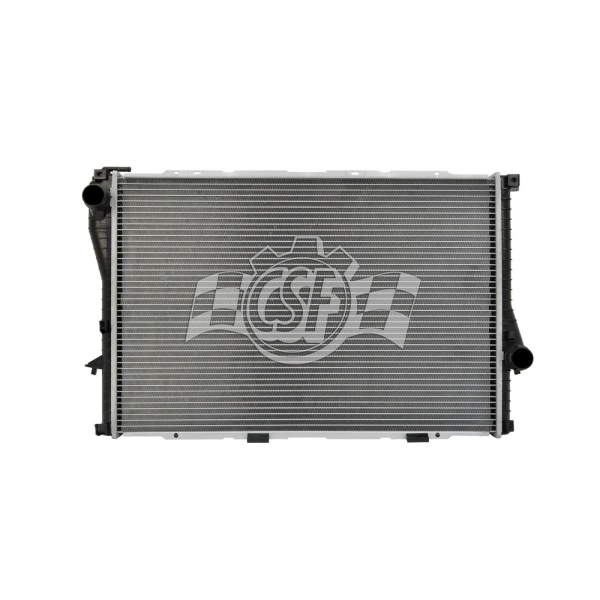

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 9/16 Right |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 31 7/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 |
| Core Length | 25 9/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 17 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/4 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 1 |
| UPC | 710353029190 |
| OE Part Number | CU2284, 17 11 1 436 060, 2284, 8012284 |
| Outlet Length(in) | 17 3/4 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 9/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2003 BMW 525i | All Trims | 6 Cyl 2.5L |
| 1999-2000 BMW 528i | All Trims | 6 Cyl 2.8L |
| 2001-2003 BMW 530i | All Trims | 6 Cyl 3.0L |
| 1999-2003 BMW 540i | All Trims | 8 Cyl 4.4L |
