Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2932 |

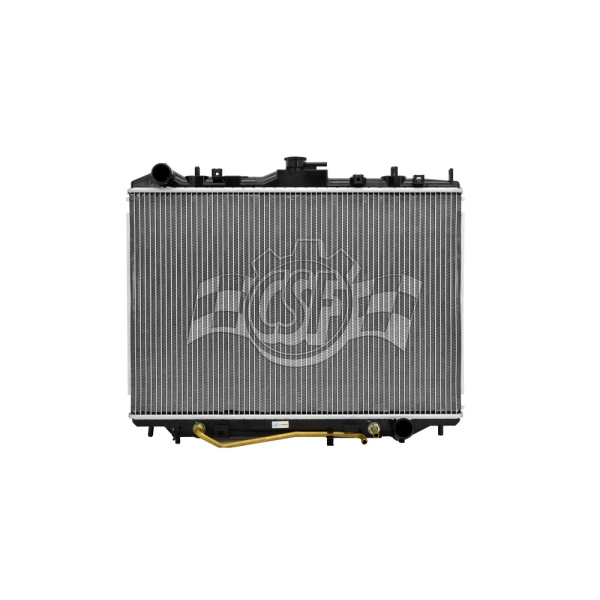

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 27 5/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 9/16 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 25 1/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 24 15/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353029329 |
| OE Part Number | 8-97328-667-0, 8012195, 8-97328-619-0, 8-97328-669-0, 8012445, 2195, 2445, 8-97209-554-0, 8-97306-328-0, CU2195, CU2445, 8-97209-553-0, 8-97328-617-0 |
| Oil Cooler (in) | 13 1/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 24 15/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2002 Honda Passport | All Trims | 6 Cyl 3.2L |
| 1998-2000 Isuzu Amigo | All Trims | 6 Cyl 3.2L |
| 2002-2004 Isuzu Axiom | All Trims | 6 Cyl 3.5L |
| 1998-2004 Isuzu Rodeo | All Trims | 6 Cyl 3.2L |
| 2001-2003 Isuzu Rodeo Sport | All Trims | 6 Cyl 3.2L |
