Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2945 |

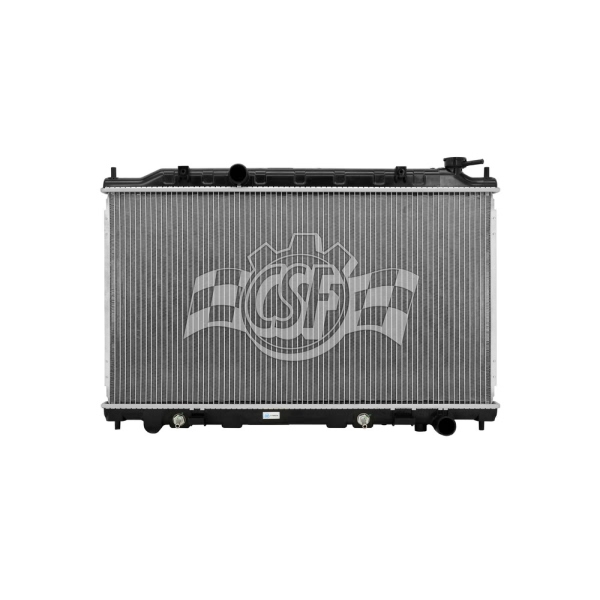

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 4 1/2 |
| Box Length (in) | 31 7/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 22 3/16 |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 28 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353029459 |
| OE Part Number | 2415, 21460-8J100, 21410-8J100, 8012415, CU2415 |
| Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 29 1/2 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2006 Nissan Altima | All Trims | 6 Cyl 3.5L |
| 2004-2006 Nissan Maxima | All Trims | 6 Cyl 3.5L |
