Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2948 |

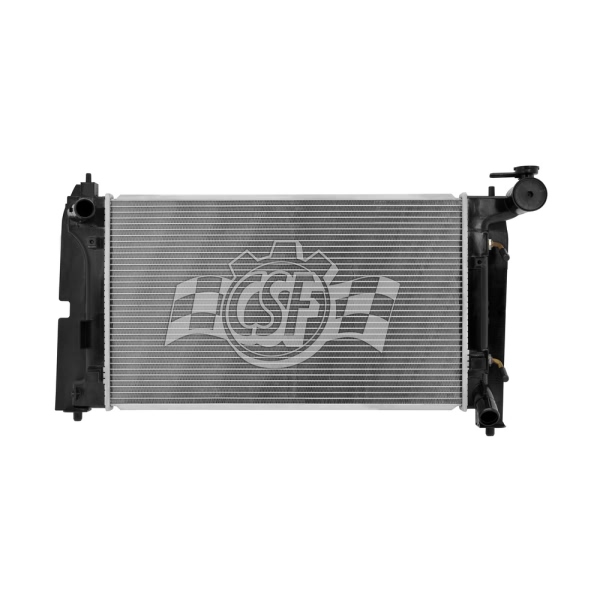

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Right |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 3/16 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 15 1/2 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 14 3/8 |
| Inlet Width (in) | 1 1/16 |
| No. Of Rows | 1 |
| UPC | 710353029480 |
| OE Part Number | 88969094, 88969096, 8012428, 16400-0D230, 221-0514, 8012432, CU2428, 16400-0D240, 2428, 2432, 16400-0D250 |
| Oil Cooler (in) | 7 7/8 (high-effeciency Concentric Type) |
| Outlet Length(in) | 14 3/8 |
| Outlet Width | 1 5/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2008 Pontiac Vibe | All Trims | 4 Cyl 1.8L |
| 2003-2008 Toyota Corolla | CE | 4 Cyl 1.8L |
| 2003-2008 Toyota Corolla | LE | 4 Cyl 1.8L |
| 2003-2008 Toyota Corolla | S | 4 Cyl 1.8L |
| 2005-2006 Toyota Corolla | XRS | 4 Cyl 1.8L |
| 2003 Toyota Matrix | XRS | 4 Cyl 1.8L |
| 2003-2008 Toyota Matrix | All Trims | 4 Cyl 1.8L |
