Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 2993 |

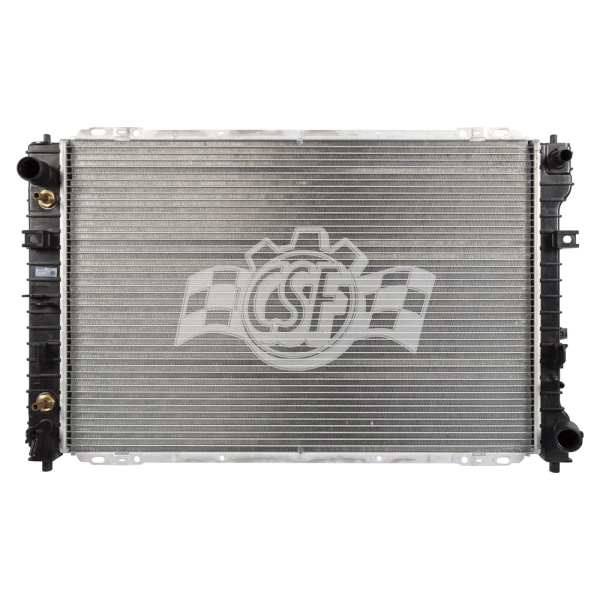

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 6 |
| Box Length (in) | 36 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 24 |
| Core Length | 27 9/16 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 18 7/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 1/2 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353029930 |
| OE Part Number | 2306, YL8Z 8005 JA, CU2306, 6L8Z 8005 AB, YF10-15-200, 8012306, YF09-15-200, YL8Z 8005 KB |
| Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
| Outlet Length(in) | 18 1/2 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2004 Ford Escape | All Trims | 4 Cyl 2.0L |
| 2005-2007 Ford Escape | All Trims | 4 Cyl 2.3L |
| 2001-2004 Mazda Tribute | All Trims | 4 Cyl 2.0L |
| 2005-2007 Mercury Mariner | All Trims | 4 Cyl 2.3L |
