Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3005 |

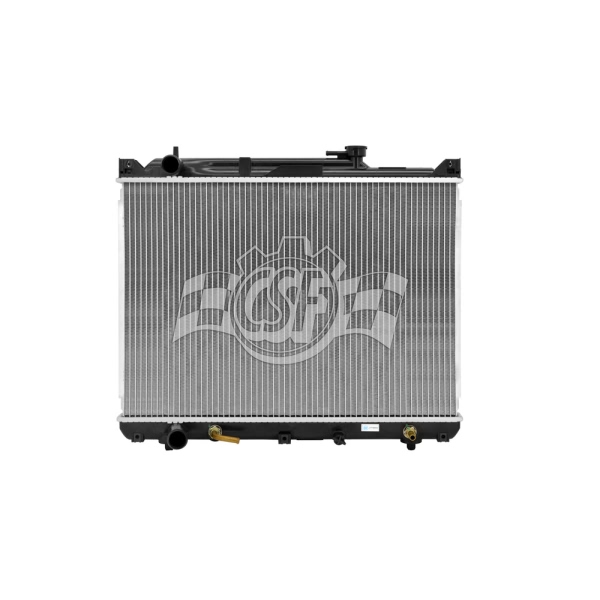

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 26 1/8 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 23 3/4 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 566 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 24 3/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353030059 |
| OE Part Number | CU2430, 2430, 17700-52D10, CU2933, 8012430, 17700-52D00, 8012933 |
| Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 24 3/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001 Suzuki Grand Vitara | XL-7 | 6 Cyl 2.7L |
| 2001 Suzuki Grand Vitara | XL-7 Limited | 6 Cyl 2.7L |
| 2001 Suzuki Grand Vitara | XL-7 Touring | 6 Cyl 2.7L |
| 2001-2005 Suzuki Grand Vitara | All Trims | 6 Cyl 2.5L |
| 2002-2003 Suzuki XL-7 | All Trims | 6 Cyl 2.7L |
