Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3006 |

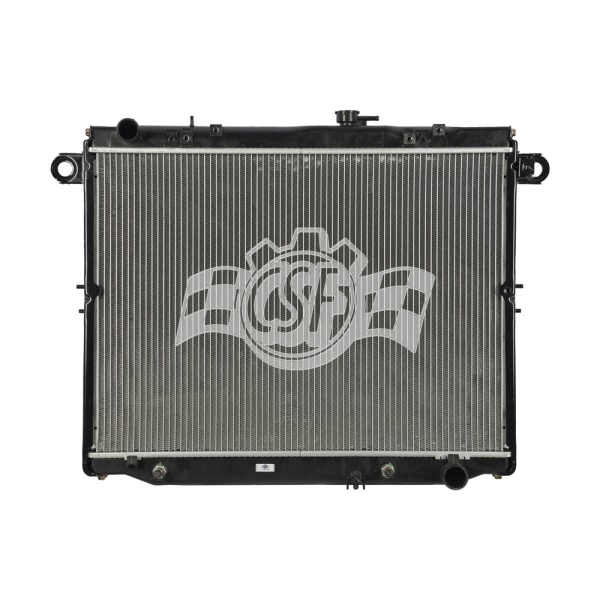

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/8 Right |
| Box Height (in) | 7 1/16 |
| Box Length (in) | 35 15/16 |
| Box Weight (lbs) | 24 |
| Box Width (in) | 28 7/16 |
| Core Length | 20 1/16 |
| Core Material | Aluminum |
| Core Thickness | 2 1/16 |
| Core Width | 27 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 28 1/8 |
| Inlet Width (in) | 2 7/16 |
| No. Of Rows | 2 |
| UPC | 710353030066 |
| OE Part Number | 2282, 16400-50290, 2755, 16400-50211, CU2282, 8012755, CU2755, 8012282, 16400-50210 |
| Oil Cooler (in) | 15 3/8 (high-efficiency Plate Type) |
| Outlet Length(in) | 28 1/8 |
| Outlet Width | 2 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimp strips to strengthen Radiator by 40% over O.E. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2007 Lexus LX470 | All Trims | 8 Cyl 4.7L |
| 1998-2007 Toyota Land Cruiser | All Trims | 8 Cyl 4.7L |
