Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3010 |

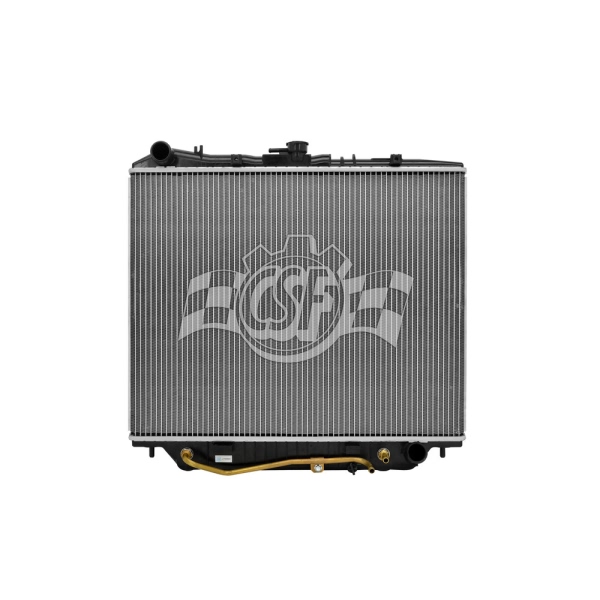

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 27 5/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 26 5/16 |
| Core Length | 19 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 25 1/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length | 24 15/16 |
| Inlet Width | 1 5/8 |
| No. Of Rows | 1 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length | 24 15/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1996-1997 Acura SLX | All Trims | 6 Cyl 3.2L |
| 1998-1999 Acura SLX | All Trims | 6 Cyl 3.5L |
| 1992-1997 Isuzu Trooper | All Trims | 6 Cyl 3.2L |
| 1998-2002 Isuzu Trooper | All Trims | 6 Cyl 3.5L |
