Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3048 |

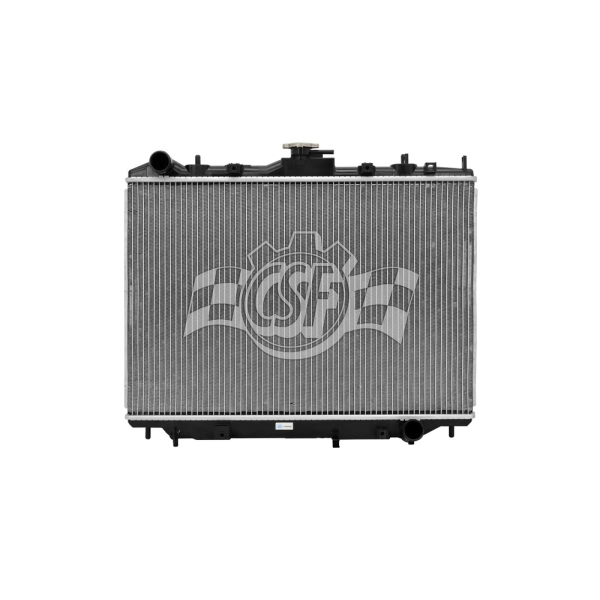

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 4 14/16 |
| Box Length (in) | 27 5/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 23 9/16 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 25 1/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 24 15/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353030486 |
| OE Part Number | 8-97182-064-0, 8012194, 2194, CU2194 |
| Outlet Length(in) | 24 15/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2000 Isuzu Amigo | All Trims | 4 Cyl 2.2L |
| 1998-2003 Isuzu Rodeo | All Trims | 4 Cyl 2.2L |
| 2001-2003 Isuzu Rodeo Sport | All Trims | 4 Cyl 2.2L |
