Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3143 |

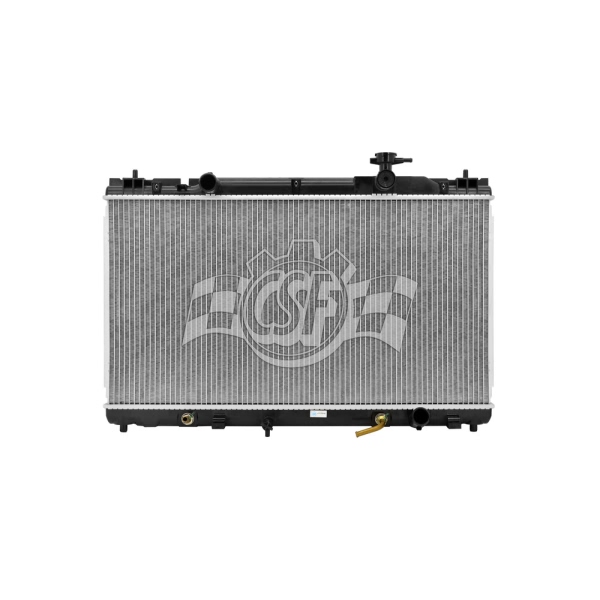

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Right |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 32 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 22 3/4 |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4513 |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353031438 |
| OE Part Number | 16400-0H200, 16400-0H131, 16400-28270, 8012436, 16400-0H020, 2436, 16400-0H130, 2437, 221-0505, 221-0506, 16400-28271, CU2437, CU2436, 16400-0H030, 8012437, 16400-28280 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 29 1/2 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2006 Toyota Camry | All Trims | 4 Cyl 2.4L |
| 2004-2008 Toyota Solara | All Trims | 4 Cyl 2.4L |
