Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3145 |

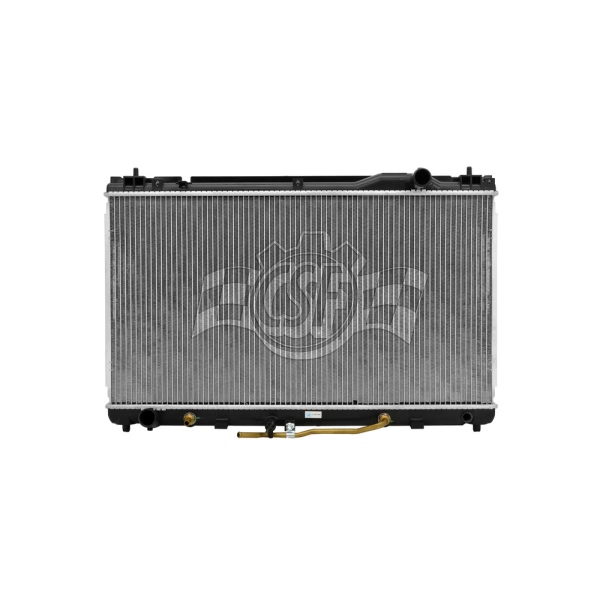

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 32 1/4 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 21 15/16 |
| Core Length | 15 13/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353031452 |
| OE Part Number | 2435, 2434, 16400-0A240, 16400-20320, CU2434, 16400-0A230, CU2435, 16400-20270, 8012434, 221-0503, 221-0504, 16400-0A420, 8012435, 16400-20261 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 29 1/2 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2003 Lexus ES300 | All Trims | 6 Cyl 3.0L |
| 2004-2006 Lexus ES330 | All Trims | 6 Cyl 3.3L |
| 2002-2006 Toyota Camry | All Trims | 6 Cyl 3.0L |
| 2004-2006 Toyota Camry | All Trims | 6 Cyl 3.3L |
| 2004-2008 Toyota Solara | All Trims | 6 Cyl 3.3L |
