Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3146 |

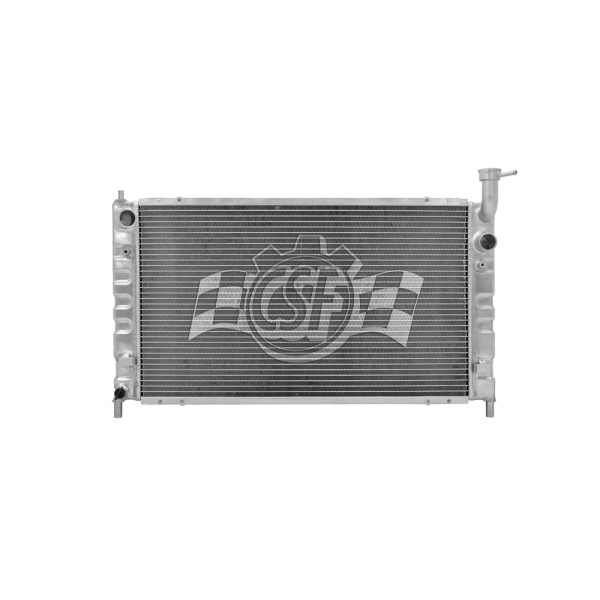

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Right |
| Box Height (in) | 6 5/8 |
| Box Length (in) | 30 7/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 19 13/16 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 13 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4513 |
| Hazardous Material | No |
| Inlet Length (in) | 14 5/16 |
| Inlet Width (in) | 13/16 |
| No. Of Rows | 1 |
| UPC | 710353031469 |
| OE Part Number | 3093, CU2863, CU2758, 7013093, 8012863, 16400 21250, 2863 |
| Outlet Length(in) | 14 5/16 |
| Outlet Width | 13/16 |
| Radiator Cap Supplied | No |
| Tank Material | Aluminum |
| Tech Note | O.E.M. style All Aluminum tanks & core model;supplied as Radiator & Condenser module. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2003 Toyota Prius | All Trims | 4 Cyl 1.5L |
