Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3150 |

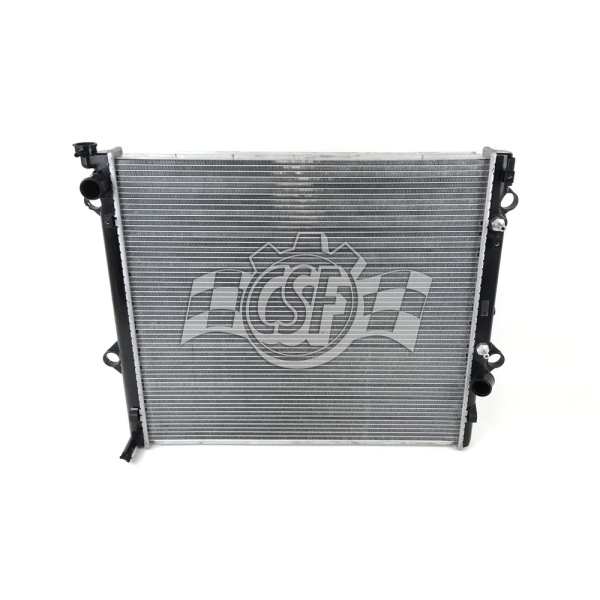

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 6 |
| Box Length (in) | 35 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 27 |
| Core Length | 25 9/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 23 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 24 |
| Inlet Width (in) | 1 15/16 |
| No. Of Rows | 1 |
| UPC | 710353031506 |
| OE Part Number | 16400-50300, 16400-50313, 2581, 221-3124, 16400-50310, 16400-50312, 8012581, 8012690, CU2581, 221-3125, 2690 |
| Oil Cooler (in) | 9 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 24 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2009 Lexus GX470 | All Trims | 8 Cyl 4.7L |
| 2003-2009 Toyota 4Runner | All Trims | 8 Cyl 4.7L |
