Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3154 |

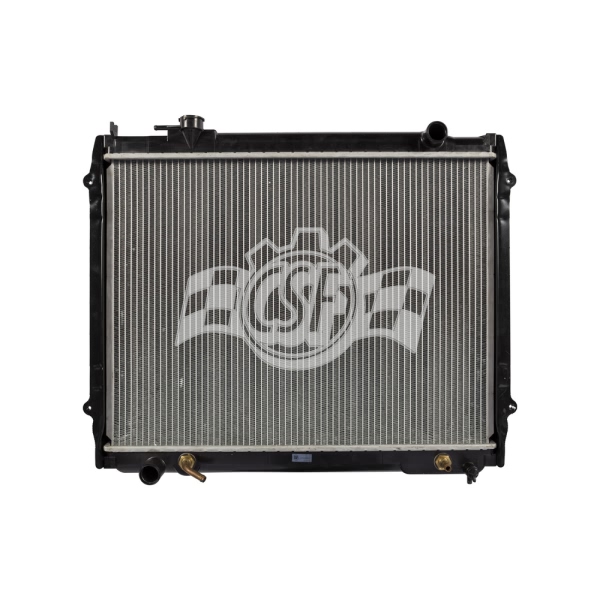

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 6 |
| Box Length (in) | 31 |
| Box Weight (lbs) | 15 |
| Box Width (in) | 28 |
| Core Length | 18 11/16 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 25 1/4 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 25 9/16 |
| Inlet Width (in) | 1 3/4 |
| No. Of Rows | 1 |
| UPC | 710353031544 |
| OE Part Number | 16410-0C014, 16410-0C024, 1986, 16400-0C012, 221-3137, 16400-0C022, 1778, 8011778, 16410-0C010, 16410-0C011, 16410-0C013, CU1778, 16410-0C023, 16410-0C021 |
| Oil Cooler (in) | 16 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 25 9/16 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-2004 Toyota Tacoma | All Trims | 4 Cyl 2.4L |
