Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3157 |

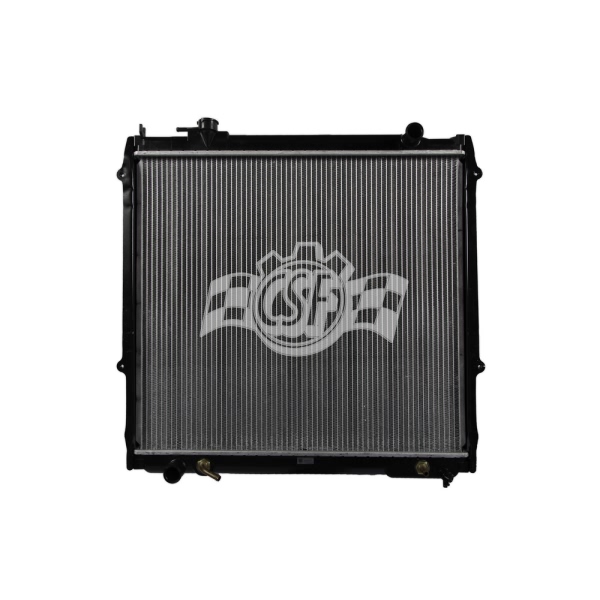

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 6 |
| Box Length (in) | 31 |
| Box Weight (lbs) | 20 |
| Box Width (in) | 31 |
| Core Length | 22 5/8 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 25 1/4 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 25 9/16 |
| Inlet Width (in) | 1 3/4 |
| No. Of Rows | 1 |
| UPC | 710353031575 |
| OE Part Number | 52469689, 16410-0C042, 16410-0C040, 221-3138, 8011755, 16410-0C041, CU1755, 1755 |
| Oil Cooler (in) | 16 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 25 9/16 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M style plastic tanks & Aluminum core;Multifit Model. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1995-1997 Toyota Tacoma | All Trims | 4 Cyl 2.7L |
| 1995-2004 Toyota Tacoma | All Trims | 6 Cyl 3.4L |
| 1998-2004 Toyota Tacoma | Pre Runner | 4 Cyl 2.7L |
| 1998-2004 Toyota Tacoma | Pre Runner | 6 Cyl 3.4L |
| 2001-2003 Toyota Tacoma | DLX | 4 Cyl 2.7L |
| 2001-2003 Toyota Tacoma | DLX | 6 Cyl 3.4L |
| 2001-2004 Toyota Tacoma | All Trims | 4 Cyl 2.7L |
| 2004 Toyota Tacoma | Base | 4 Cyl 2.7L |
| 2004 Toyota Tacoma | Base | 6 Cyl 3.4L |
