Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3178 |

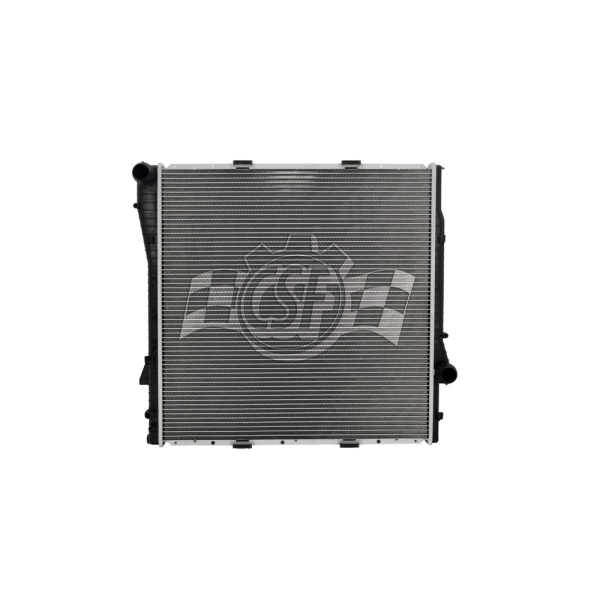

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 9/16 Right |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 13 |
| Box Width (in) | 26 7/8 |
| Core Length | 23 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 23 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 24 5/16 |
| Inlet Width (in) | 1 15/16 |
| No. Of Rows | 1 |
| UPC | 710353031780 |
| OE Part Number | 2593, 17 10 1 439 101, 2625, CU2594, 8012593, CU2593 |
| Outlet Length(in) | 24 5/16 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe. |
| Top Hose Fitting (in) | 1 9/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2006 BMW X5 | All Trims | 8 Cyl 4.4L |
| 2002-2003 BMW X5 | All Trims | 8 Cyl 4.6L |
| 2004-2006 BMW X5 | All Trims | 8 Cyl 4.8L |
