Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3188 |

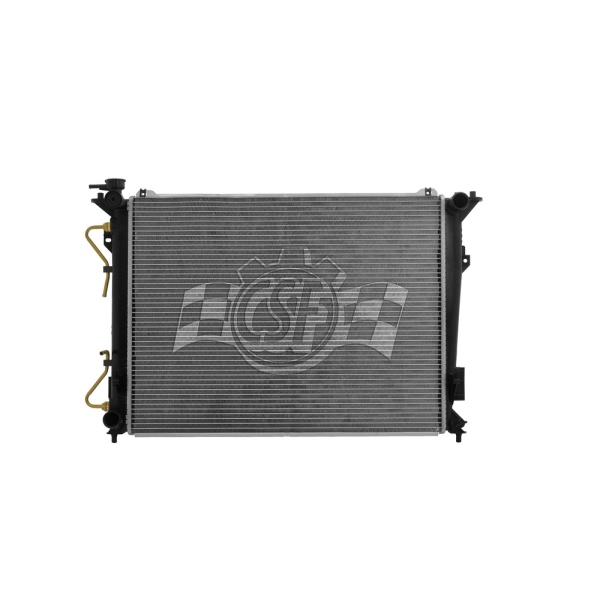

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 34 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 3/8 |
| Core Length | 25 1/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 19 3/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 19 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353031889 |
| OE Part Number | 25310-3K280, 8012831, 2899, 2831, 25310-3K080, CU2831, 25310-3K180 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 19 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2009 Hyundai Azera | All Trims | 6 Cyl 3.8L |
| 2007-2009 Hyundai Azera | All Trims | 6 Cyl 3.3L |
| 2006-2007 Hyundai Sonata | All Trims | 4 Cyl 2.4L |
| 2006-2007 Hyundai Sonata | All Trims | 6 Cyl 3.3L |
