Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3191 |

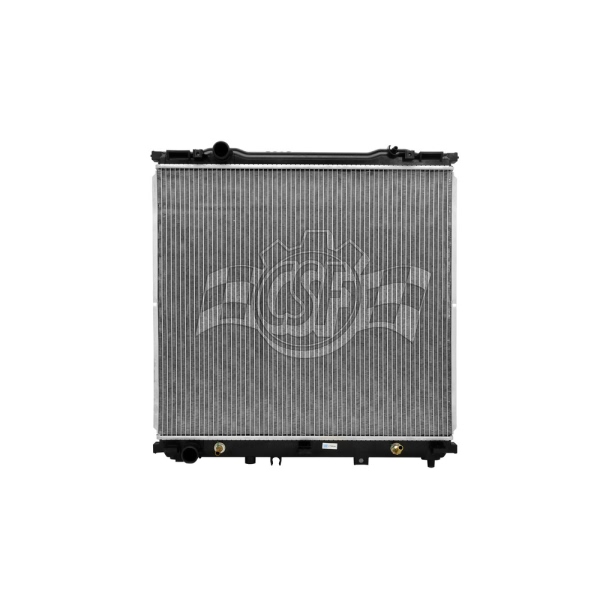

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 27 11/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 29 1/4 |
| Core Length | 22 11/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 25 1/8 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 24 15/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353031919 |
| OE Part Number | 25311-3E250, 2585, CU2585, 8012585, 25310-3E250, 25310-3E200 |
| Oil Cooler (in) | 15 1/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 24 15/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2006 Kia Sorento | All Trims | 6 Cyl 3.5L |
