Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3200 |

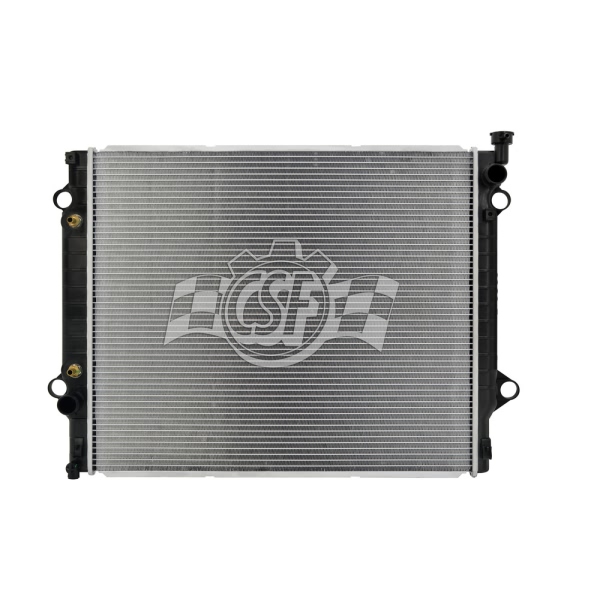

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 33 5/8 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 1/8 |
| Core Length | 25 9/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 21 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 21 3/4 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353032008 |
| OE Part Number | 16410-0P030, CU2802, 8012800, 221-3139, 16410-0P040, 8012802 |
| Oil Cooler (in) | 10 1/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 21 3/4 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2015 Toyota Tacoma | All Trims | 4 Cyl 2.7L |
| 2005-2015 Toyota Tacoma | All Trims | 6 Cyl 4.0L |
