Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3244 |

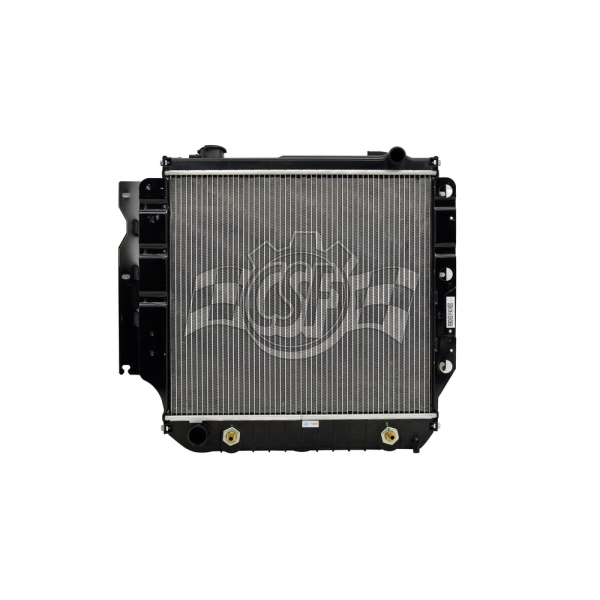

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 24 15/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 27 5/16 |
| Core Length | 18 1/8 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 19 5/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 20 3/16 |
| Inlet Width (in) | 1 15/16 |
| No. Of Rows | 1 |
| UPC | 710353032442 |
| OE Part Number | 52004781, 52006122, 52006123, 52006124, 52006125, 52006126, 52028112, 52028114, 52028120, 52029160, 52040229, 52040285, 52040286, 52040287, 52040288, 8952040229, 8952040285, 8952040286, 8952040287, 8952040288, 52006127, 52080181, 8011682, 8012101, 5200612 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 20 3/16 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core Multifit model;Supplied with snap-on & push-on oil cooler fittings & special removable bracket;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-2002 Jeep TJ | All Trims | 4 Cyl 2.5L |
| 1997-2006 Jeep TJ | All Trims | 6 Cyl 4.0L |
| 2003 Jeep TJ | All Trims | 4 Cyl 2.4L |
| 2005-2006 Jeep TJ | All Trims | 4 Cyl 2.4L |
| 1987-1995 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
| 1991-1995 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
| 1997-2002 Jeep Wrangler | All Trims | 4 Cyl 2.5L |
| 1997-2006 Jeep Wrangler | All Trims | 6 Cyl 4.0L |
| 2005-2006 Jeep Wrangler | All Trims | 4 Cyl 2.4L |
