Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3246 |

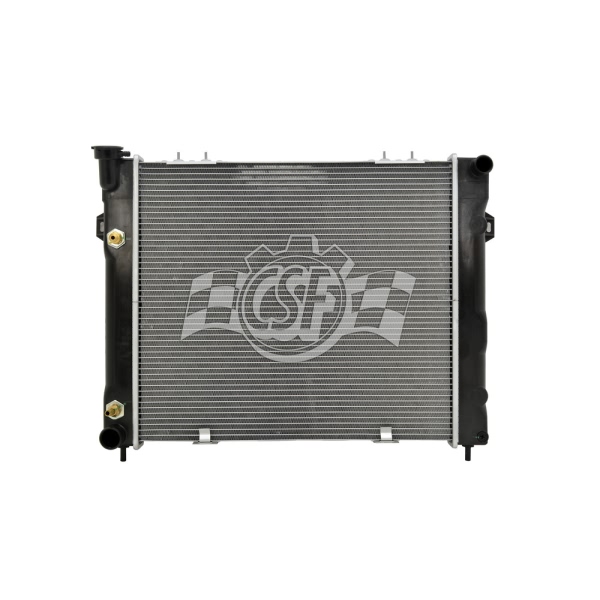

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 30 5/8 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 24 1/8 |
| Core Length | 22 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 19 5/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 20 1/4 |
| Inlet Width (in) | 2 |
| No. Of Rows | 1 |
| UPC | 710353032466 |
| OE Part Number | 4734104, 4734103, 4734105, 52027798, 52028379, 52005166, 52005169, 52005172, 52079597, 1396, 1395, 2231, CU1396, 2232, 8011396, 52005160, CU2182, 8012182, 8011395, 2182 |
| Oil Cooler (in) | 12 (high-effeciency Concentric Type) |
| Outlet Length(in) | 20 1/4 |
| Outlet Width | 2 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | Economical Lightweight Aluminum core model with high performance oil cooler; Enhanced Multifit model to accommodate all variations of fan shrouds; Also 3/8" & 7/16" flare fittings supplied to accommodate snap-on & push-on oil cooler lines. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1993-1998 Jeep Grand Cherokee | All Trims | 6 Cyl 4.0L |
