Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3252 |

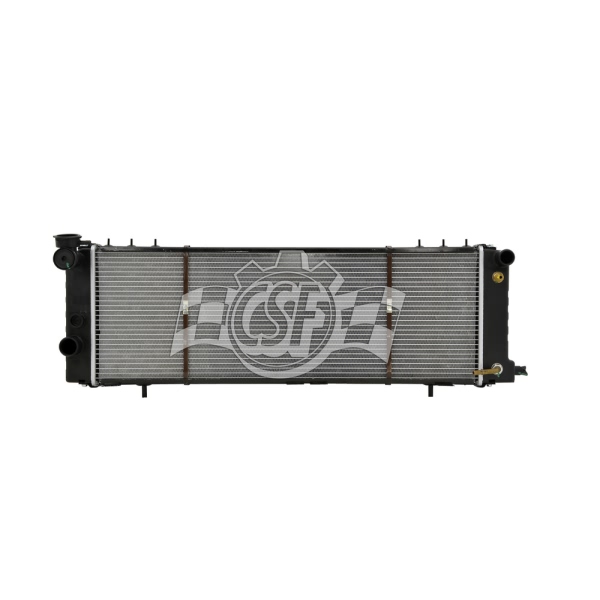

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 7 7/16 |
| Box Length (in) | 39 5/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 15 1/4 |
| Core Length | 31 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 10 15/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 10 15/16 |
| Inlet Width (in) | 2 7/16 |
| No. Of Rows | 1 |
| UPC | 710353032527 |
| OE Part Number | 52028537, 2340, 8012340, CU2340 |
| Oil Cooler (in) | 7 1/2 (high-effeciency Concentric Type) |
| Outlet Length(in) | 10 15/16 |
| Outlet Width | 2 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | Economical Lightweight Aluminum core model. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1991-2001 Jeep Cherokee | All Trims | 6 Cyl 4.0L |
