Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3253 |

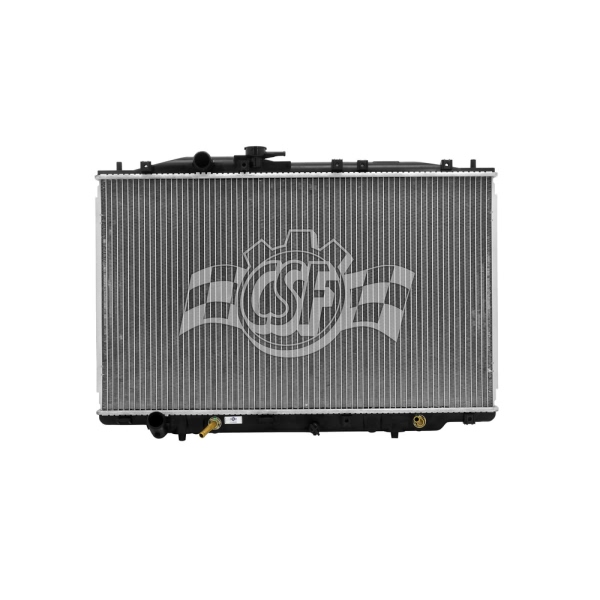

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 30 7/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 23 1/8 |
| Core Length | 16 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 28 1/4 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 28 11/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353032534 |
| OE Part Number | 19010-RJA-J52, 2814, 8012838, 2838, 19010-RJA-J51, CU2838 |
| Oil Cooler (in) | 14 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 28 11/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2008 Acura RL | All Trims | 6 Cyl 3.5L |
