Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3256 |

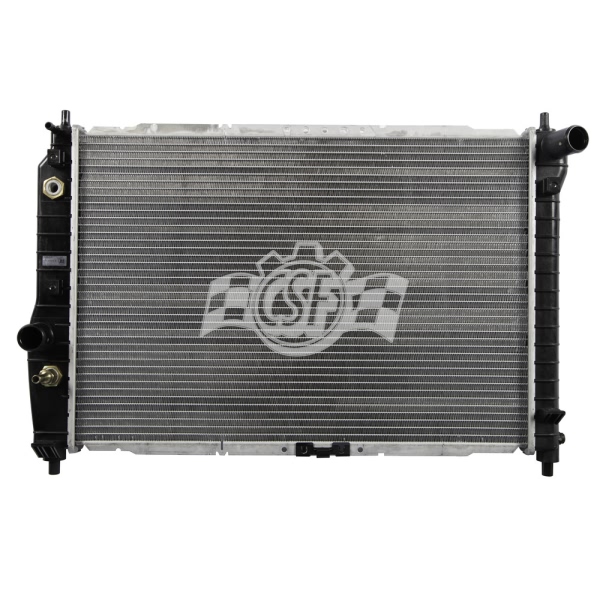

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 |
| Box Length (in) | 31 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 21 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 11/16 |
| Core Width | 16 7/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 7/8 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353032565 |
| OE Part Number | 96443479, 96536525, 96536526, 96536527, 96816484, CU2873, 8012873, 96536669, 2873 |
| Oil Cooler (in) | 10 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 7/8 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2008 Chevrolet Aveo | All Trims | 4 Cyl 1.6L |
| 2006-2008 Chevrolet Aveo5 | All Trims | 4 Cyl 1.6L |
| 2005-2008 Pontiac Wave | All Trims | 4 Cyl 1.6L |
| 2005-2007 Pontiac Wave5 | All Trims | 4 Cyl 1.6L |
| 2007-2011 Suzuki Swift | All Trims | 4 Cyl 1.5L |
| 2004-2010 Suzuki Swift+ | All Trims | 4 Cyl 1.6L |
