Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3260 |

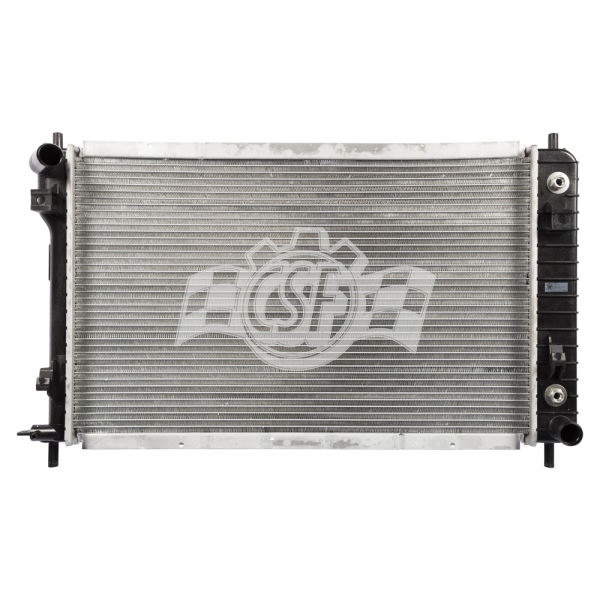

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Right |
| Box Height (in) | 7 |
| Box Length (in) | 33 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 21 |
| Core Length | 26 |
| Core Material | Aluminum |
| Core Thickness | 15/16 |
| Core Width | 16 7/8 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 7/8 |
| Inlet Width (in) | 2 1/16 |
| No. Of Rows | 1 |
| UPC | 710353032602 |
| OE Part Number | 15781369, 2879, CU2879, 8012879 |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 7/8 |
| Outlet Width | 2 1/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2009 Chevrolet Equinox | All Trims | 6 Cyl 3.4L |
| 2006-2009 Pontiac Torrent | All Trims | 6 Cyl 3.4L |
