Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3262 |

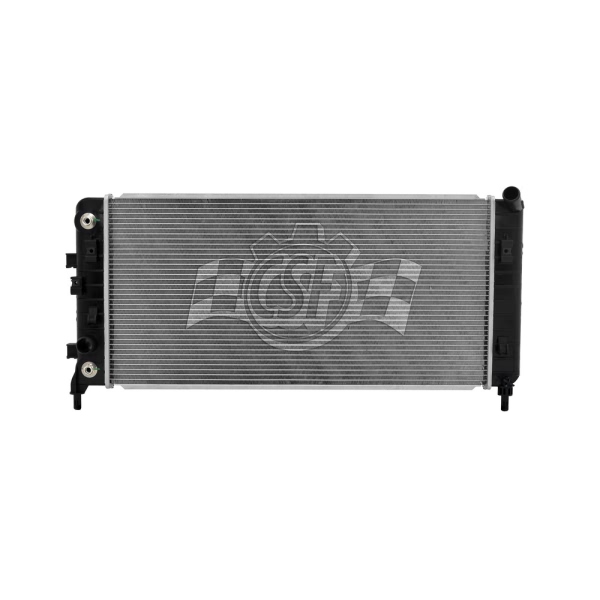

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 37 1/8 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 19 7/16 |
| Core Length | 29 5/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 14 1/2 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 14 5/8 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353032626 |
| OE Part Number | 10344419, CU2827, 8012827 |
| Oil Cooler (in) | 11 1/2 (high-efficiency Plate Type) |
| Outlet Length(in) | 14 5/8 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings. |
| Top Hose Fitting (in) | 1 5/16 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2008 Buick Allure | All Trims | 6 Cyl 3.6L |
| 2005-2008 Buick LaCrosse | All Trims | 6 Cyl 3.6L |
| 2006-2011 Chevrolet Impala | All Trims | 6 Cyl 3.5L |
| 2006-2011 Chevrolet Impala | All Trims | 6 Cyl 3.9L |
| 2006 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.9L |
| 2006-2007 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.5L |
