Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3265 |

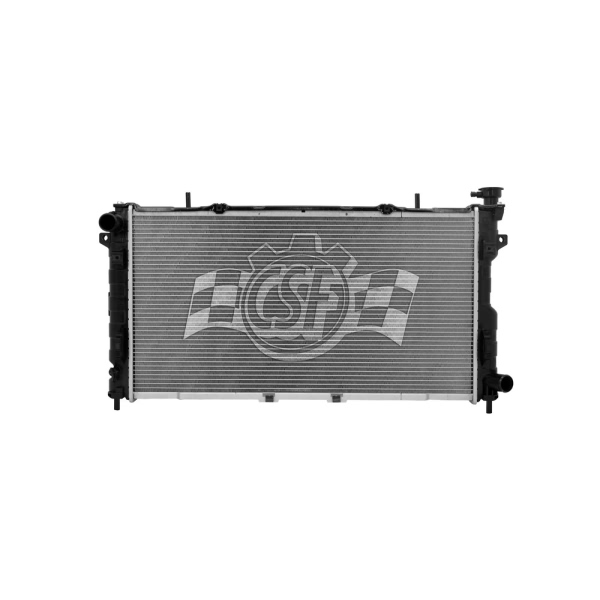

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 9/16 Right |
| Box Height (in) | 7 4/16 |
| Box Length (in) | 37 3/4 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 21 15/16 |
| Core Length | 30 1/4 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 15 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 17 3/16 |
| Inlet Width (in) | 1 15/16 |
| No. Of Rows | 1 |
| UPC | 710353032657 |
| OE Part Number | 8012770, 4677694 AA, 4677694, 2770, CU2770, 4677524, 4677524 AA |
| Outlet Length(in) | 17 3/16 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimp strips to strengthen Radiator by 40% over O.E. |
| Top Hose Fitting (in) | 1 9/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2007 Dodge Caravan | All Trims | 4 Cyl 2.4L |
