Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3278 |

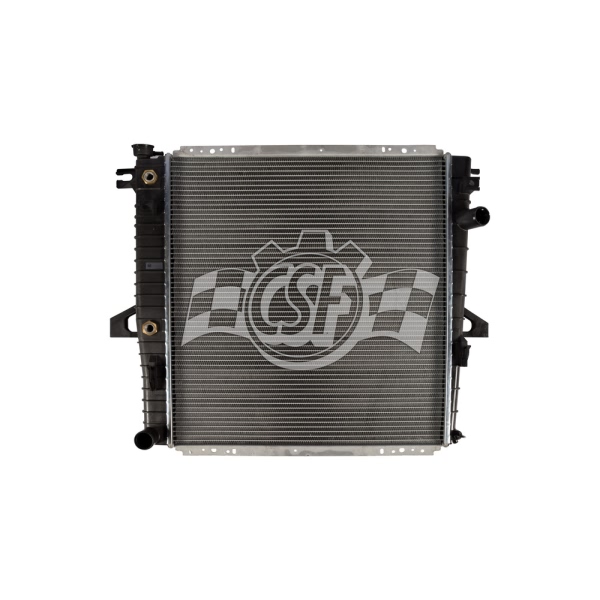

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Right |
| Box Height (in) | 8 |
| Box Length (in) | 32 |
| Box Weight (lbs) | 20 |
| Box Width (in) | 28 |
| Core Length | 20 11/16 |
| Core Material | Aluminum |
| Core Thickness | 2 1/16 |
| Core Width | 23 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 23 5/8 |
| Inlet Width (in) | 2 3/4 |
| No. Of Rows | 2 |
| UPC | 710353032787 |
| OE Part Number | 2018, XL2H 8005 HABX, F87Z 8005 KA, CU2174, 8012018, F77Z 8005 BB, 8012174, F77H 8005 BB, XL2H 8005 HA, F87H 8005 KA |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 23 5/8 |
| Outlet Width | 2 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-1999 Ford Explorer | All Trims | 6 Cyl 4.0L |
| 1998-1999 Mercury Mountaineer | All Trims | 6 Cyl 4.0L |
