Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3282 |

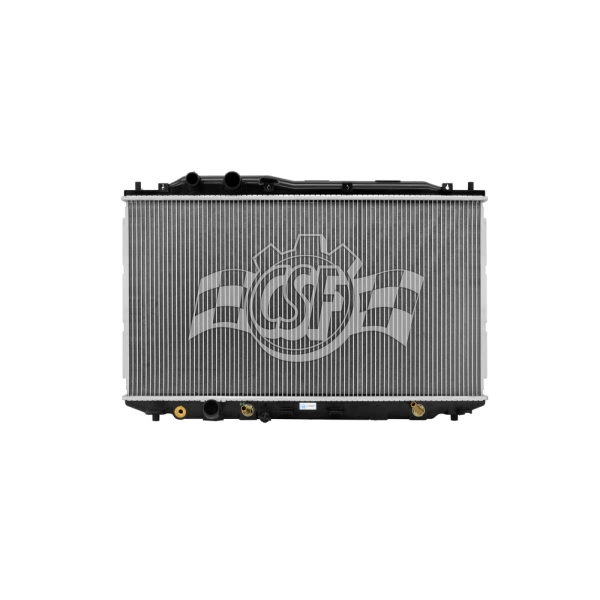

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 29 1/4 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 20 9/16 |
| Core Length | 14 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 26 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 27 3/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353032824 |
| OE Part Number | 19010-PHM-901, 19010-RNA-A51, 19010-RNB-C51, 2927, CU2927, 8012927, 8012923, 2923, 19010-RNA-A01, CU2923, 19010-RNB-A01 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 27 3/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model. |
| Top Hose Fitting (in) | 1 & 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2011 Acura CSX | All Trims | 4 Cyl 2.0L |
| 2006-2011 Honda Civic | All Trims | 4 Cyl 1.3L |
| 2006-2011 Honda Civic | All Trims | 4 Cyl 1.8L |
| 2000-2006 Honda Insight | All Trims | 3 Cyl 1.0L |
