Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3285 |

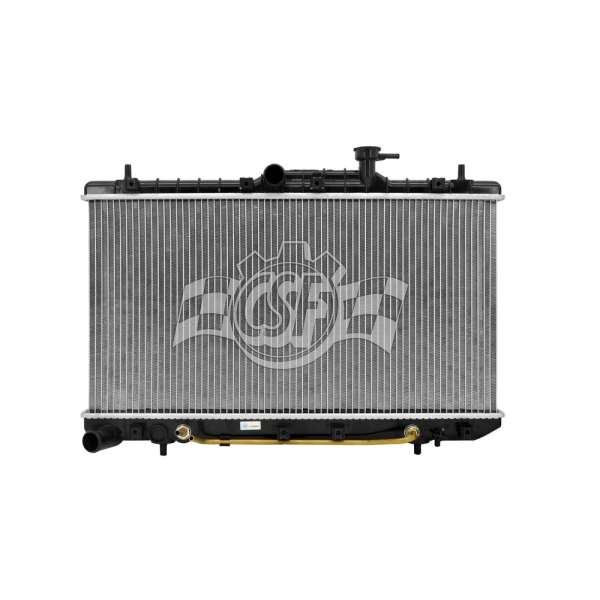

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Left |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 28 1/16 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 21 |
| Core Length | 13 3/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 25 1/2 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4502 |
| Hazardous Material | No |
| Inlet Length (in) | 26 |
| Inlet Width (in) | 1 1/8 |
| No. Of Rows | 1 |
| UPC | 710353032855 |
| OE Part Number | 8012896, 25310-25152, 2904, 2896, CU2896 |
| Oil Cooler (in) | 14 3/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 26 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Centre |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Dodge Verna | All Trims | 4 Cyl 1.5L |
| 2004-2005 Dodge Verna | All Trims | 4 Cyl 1.6L |
| 2003-2006 Hyundai Accent | All Trims | 4 Cyl 1.6L |
