Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3287 |

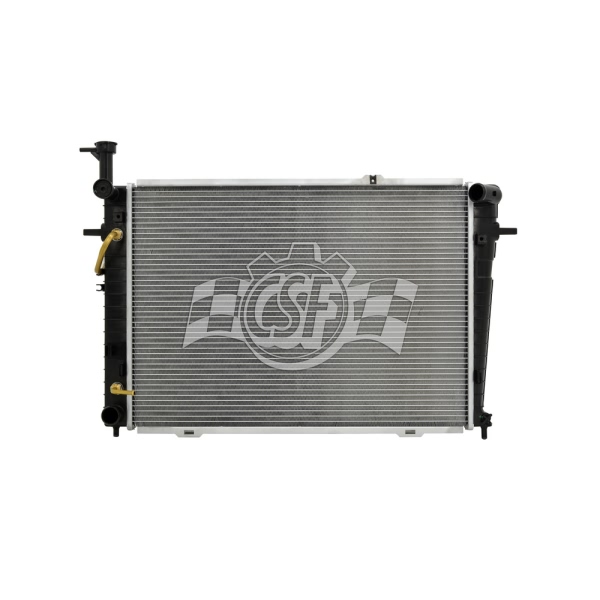

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 7 5/8 |
| Box Length (in) | 34 3/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 24 1/8 |
| Core Length | 25 3/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 18 1/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4503 |
| Hazardous Material | No |
| Inlet Length (in) | 18 1/16 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353032879 |
| OE Part Number | 13074, 25310-2E800, 25310-2E801, 2785, CU13074, 8012785, CU2785 |
| Oil Cooler (in) | 11 1/2 (high-effeciency Concentric Type) |
| Outlet Length(in) | 18 1/16 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with steel crimp strips to strengthen Radiator by 40% over O.E. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2009 Hyundai Tucson | All Trims | 4 Cyl 2.0L |
| 2005-2009 Hyundai Tucson | All Trims | 6 Cyl 2.7L |
| 2005-2010 Kia Sportage | All Trims | 6 Cyl 2.7L |
