Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3320 |

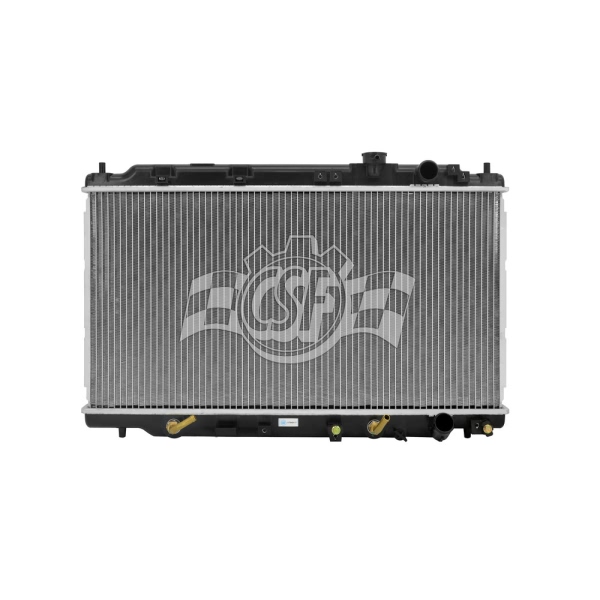

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Right |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 29 1/16 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 19 13/16 |
| Core Length | 13 3/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 26 5/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4514 |
| Hazardous Material | No |
| Inlet Length (in) | 26 15/16 |
| Inlet Width (in) | 1 5/16 |
| No. Of Rows | 1 |
| UPC | 710353033203 |
| OE Part Number | 19010-P73-013, 19010-P75-A53, CU1742, 8011568, 8011742, 1742, 19010-P72-A03, 221-3211, 8011741, 1741, 221-3212, CU1741, 19010-P72-A53, 1568 |
| Oil Cooler (in) | 12 13/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 26 15/16 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model to accommodate various fan shrouds. |
| Top Hose Fitting (in) | 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-2001 Acura Integra | All Trims | 4 Cyl 1.8L |
