Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3360 |

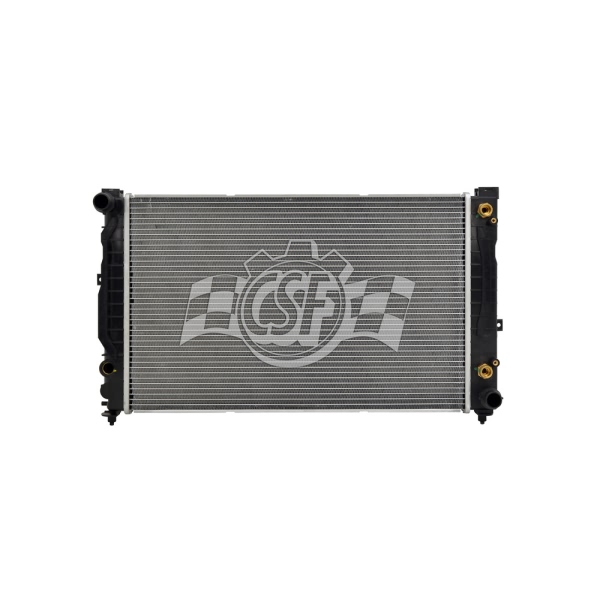

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/4 Left |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 19 3/16 |
| Core Length | 24 13/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 15 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 15 13/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| Oil Cooler (in) | 11 13/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 15 13/16 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;with quick-connect inlet & outlet pipe;Manufactured with steel crimps to strengthen radiator by 40% over O.E. |
| Top Hose Fitting (in) | 1 1/4 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-2001 Audi A4 | All Trims | 4 Cyl 1.8L |
| 1997-2001 Audi A4 Quattro | All Trims | 4 Cyl 1.8L |
| 1997 Volkswagen Passat | All Trims | 6 Cyl 2.8L |
| 1998-2005 Volkswagen Passat | All Trims | 4 Cyl 1.8L |
