Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3392 |

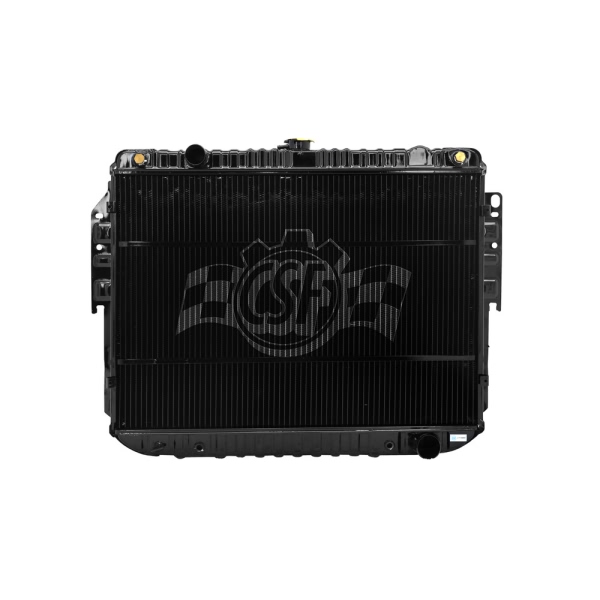

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/4 Right |
| Box Height (in) | 5 1/2 |
| Box Length (in) | 33 3/16 |
| Box Weight (lbs) | 19 |
| Box Width (in) | 25 1/2 |
| Core Length | 18 3/4 |
| Core Material | Copper |
| Core Thickness | 1 1/8 |
| Core Width | 27 1/16 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4501 |
| Hazardous Material | No |
| Inlet Length (in) | 26 13/16 |
| Inlet Width (in) | 1 3/4 |
| No. Of Rows | 2 |
| UPC | 710353033920 |
| OE Part Number | 4164149, 3781733, 3781737, 3781738, 3869933, 3869936, 3869941, 4016735, 4016765, 4016767, 4016771, 4016775, 4016935, 4016936, 4016941, 4016942, 4140163, 4140165, 4140167, 4140173, 4140273, 4140275, 4140277, 4140671, 52028627, 52029115, 52029116, 52029117, |
| Oil Cooler (in) | 14 3/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 26 13/16 |
| Outlet Width | 1 3/4 |
| Radiator Cap Supplied | No |
| Tank Material | Brass |
| Tech Note | Rugged ALL METAL model. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1975-1979 Chrysler Cordoba | All Trims | 8 Cyl 5.2L |
| 1975-1979 Chrysler Cordoba | All Trims | 8 Cyl 5.9L |
| 1979-1980 Chrysler New Yorker | All Trims | 8 Cyl 5.2L |
| 1979-1980 Chrysler New Yorker | All Trims | 8 Cyl 5.9L |
| 1979-1980 Chrysler Newport | All Trims | 8 Cyl 5.2L |
| 1979-1980 Chrysler Newport | All Trims | 8 Cyl 5.9L |
| 1979-1980 Dodge B100 | All Trims | 8 Cyl 5.2L |
| 1981-1994 Dodge B150 | All Trims | 8 Cyl 5.2L |
| 1988-1994 Dodge B150 | All Trims | 6 Cyl 3.9L |
| 1995-1998 Dodge B1500 | All Trims | 6 Cyl 3.9L |
