Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3396 |

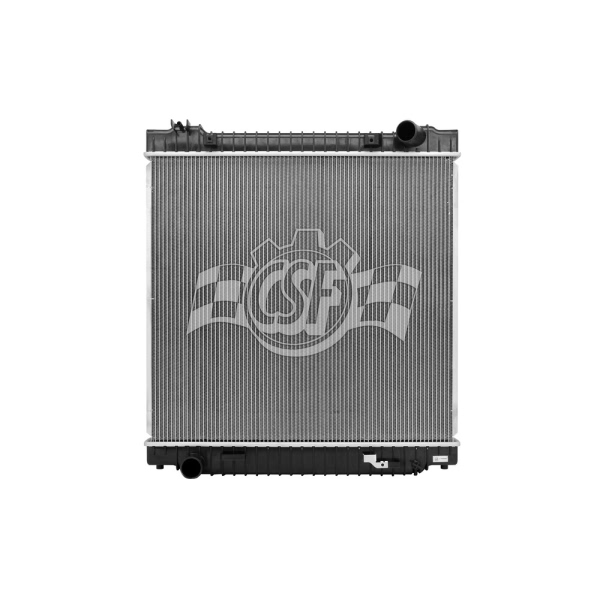

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/4 Left |
| Box Height (in) | 7 13/16 |
| Box Length (in) | 28 1/2 |
| Box Weight (lbs) | 20 |
| Box Width (in) | 32 |
| Core Length | 23 5/8 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 24 15/16 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 25 7/8 |
| Inlet Width (in) | 2 13/16 |
| No. Of Rows | 2 |
| UPC | 710353033968 |
| OE Part Number | 2976, 8012976, CU2976, 6C2Z 8005 B, 6C24 8005 CA |
| Oil Cooler (in) | 12 (high-efficiency Plate Type) |
| Outlet Length(in) | 25 7/8 |
| Outlet Width | 2 13/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2005 Ford E-350 Club Wagon | All Trims | 8 Cyl 6.0L |
| 2004-2010 Ford E-350 Super Duty | All Trims | 8 Cyl 6.0L |
