Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3414 |

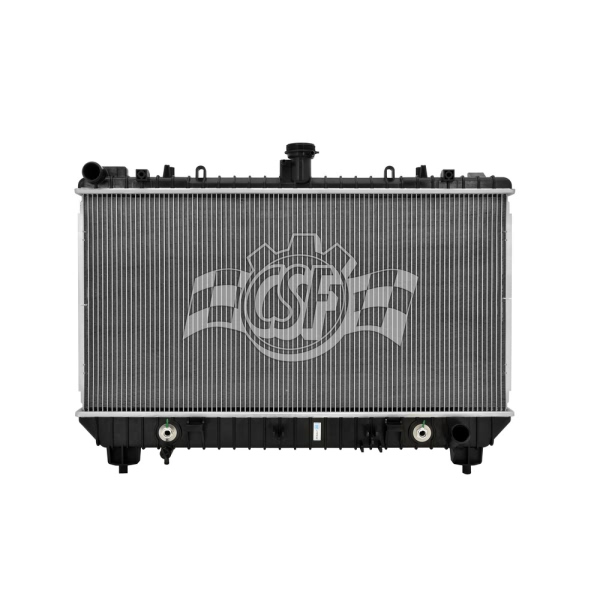

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 5/16 Right |
| Box Height (in) | 6 14/16 |
| Box Length (in) | 32 7/16 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 24 3/4 |
| Core Length | 15 3/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 29 11/16 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 30 1/4 |
| Inlet Width (in) | 2 1/4 |
| No. Of Rows | 1 |
| UPC | 710353034149 |
| OE Part Number | 13142, 92218352, 8013142, CU13142 |
| Oil Cooler (in) | 17 11/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 30 1/4 |
| Outlet Width | 2 1/4 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 5/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2011 Chevrolet Camaro | All Trims | 8 Cyl 6.2L |
