Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3419 |

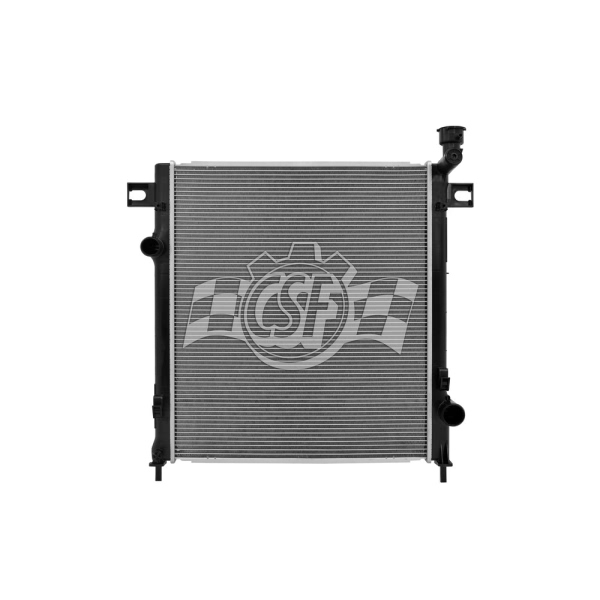

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/4 Right |
| Box Height (in) | 8 7/16 |
| Box Length (in) | 29 7/16 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 29 1/4 |
| Core Length | 19 13/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 23 |
| Cross-flow/ Down-flow | Cross Flow |
| Csf Cap Number | 4539 |
| Hazardous Material | No |
| Inlet Length (in) | 23 9/16 |
| Inlet Width (in) | 1 7/16 |
| No. Of Rows | 1 |
| UPC | 710353034194 |
| OE Part Number | CU2971, 68003973 AB, 8012971, 2971 |
| Outlet Length(in) | 23 9/16 |
| Outlet Width | 1 7/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2012 Dodge Nitro | All Trims | 6 Cyl 3.7L |
| 2007-2012 Dodge Nitro | All Trims | 6 Cyl 4.0L |
