Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3428 |

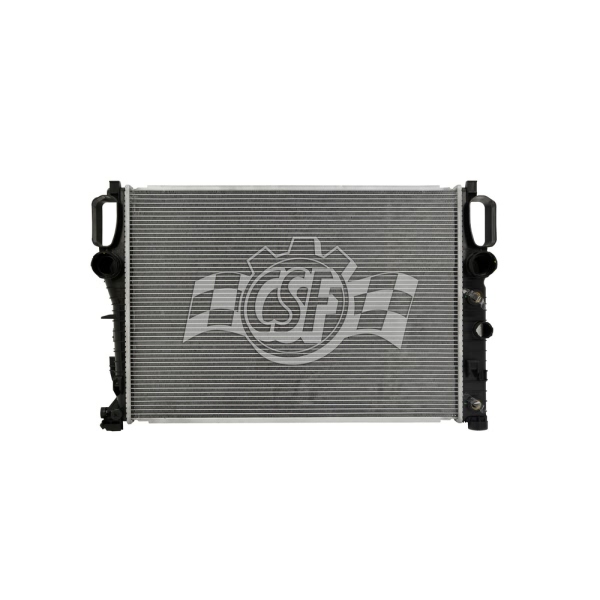

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/4 Left |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 32 1/4 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 21 9/16 |
| Core Length | 25 1/4 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 17 9/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 1/8 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353034286 |
| OE Part Number | 8012868, 2868, CU2868, 211 500 01 02 |
| Oil Cooler (in) | 8 1/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 18 1/8 |
| Outlet Width | 1 5/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Manufactured with Higher Performance Brazed Aluminum core to replace Lower Performance mechanical core. |
| Top Hose Fitting (in) | 1 3/4 & 1 1/4 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003-2006 Mercedes-Benz E320 | All Trims | 6 Cyl 3.2L |
| 2006-2009 Mercedes-Benz E350 | All Trims | 6 Cyl 3.5L |
