Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3433 |

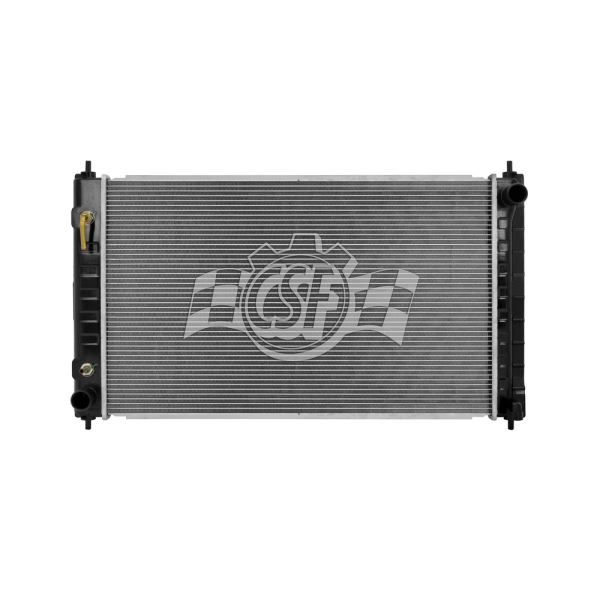

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Left |
| Box Height (in) | 5 4/16 |
| Box Length (in) | 33 3/8 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 9/16 |
| Core Length | 26 9/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 9/16 |
| Inlet Width (in) | 1 3/8 |
| No. Of Rows | 1 |
| UPC | 710353034330 |
| OE Part Number | 21460-ZN50A, 21410-JA00A, CU2988, 21460-JA00A, 21410-ZN50A, 8012988, 2988 |
| Oil Cooler (in) | 10 7/16 (high-efficiency Plate Type) |
| Outlet Length(in) | 16 9/16 |
| Outlet Width | 1 3/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core;Multifit model. |
| Top Hose Fitting (in) | 1 3/8 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2018 Nissan Altima | All Trims | 4 Cyl 2.5L |
| 2007-2018 Nissan Altima | All Trims | 6 Cyl 3.5L |
| 2009-2019 Nissan Maxima | All Trims | 6 Cyl 3.5L |
