Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3443 |

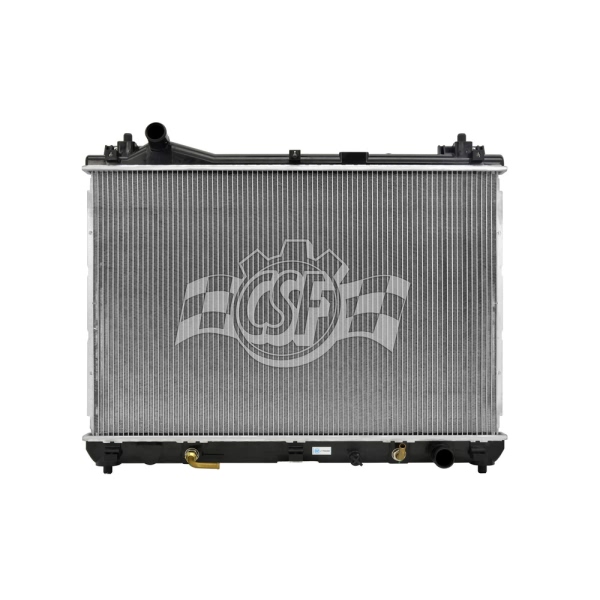

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 4 11/16 |
| Box Length (in) | 30 1/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 25 1/8 |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 5/8 |
| Core Width | 27 |
| Cross-flow/ Down-flow | Down Flow |
| Hazardous Material | No |
| Inlet Length (in) | 27 15/16 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353034439 |
| OE Part Number | 2920, 17700-65J10, 17700-66J10, CU2920, 17700-65J00, 17700-66J00, 8012920 |
| Oil Cooler (in) | 13 3/4 (high-effeciency Concentric Type) |
| Outlet Length(in) | 27 15/16 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2008 Suzuki Grand Vitara | All Trims | 6 Cyl 2.7L |
| 2009-2010 Suzuki Grand Vitara | All Trims | 6 Cyl 3.2L |
| 2009-2013 Suzuki Grand Vitara | All Trims | 4 Cyl 2.4L |
