Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3454 |

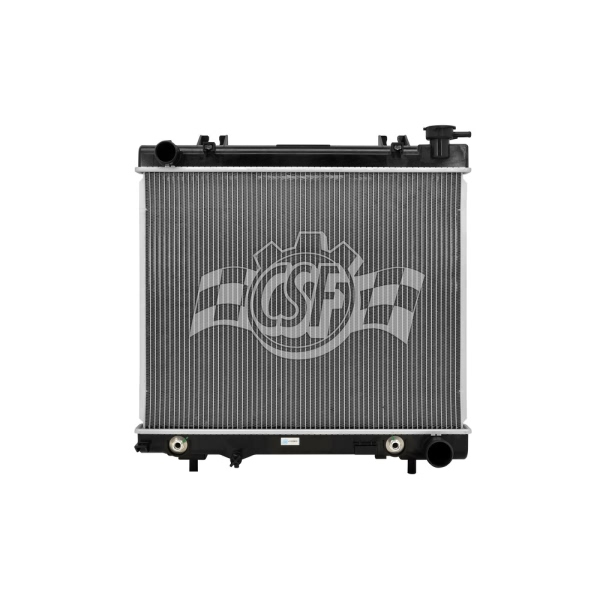

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 13/16 Right |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 24 3/8 |
| Box Weight (lbs) | 12 |
| Box Width (in) | 25 7/8 |
| Core Length | 17 11/16 |
| Core Material | Aluminum |
| Core Thickness | 1 1/4 |
| Core Width | 21 5/8 |
| Cross-flow/ Down-flow | Down Flow |
| Csf Cap Number | 4515 |
| Hazardous Material | No |
| Inlet Length (in) | 22 11/16 |
| Inlet Width (in) | 1 5/8 |
| No. Of Rows | 1 |
| UPC | 710353034545 |
| OE Part Number | 55056506 AE, CU2883, 55056506 AD, 52029262 AD, 8012883, 221-3313, 2883 |
| Oil Cooler (in) | 14 3/4 (high-efficiency Plate Type) |
| Outlet Length(in) | 22 11/16 |
| Outlet Width | 1 15/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 9/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2010 Dodge Dakota | All Trims | 8 Cyl 4.7L |
| 2005-2012 Dodge Dakota | All Trims | 6 Cyl 3.7L |
| 2006-2007 Mitsubishi Raider | All Trims | 8 Cyl 4.7L |
| 2006-2009 Mitsubishi Raider | All Trims | 6 Cyl 3.7L |
| 2011 Ram Dakota | All Trims | 6 Cyl 3.7L |
| 2011 Ram Dakota | All Trims | 8 Cyl 4.7L |
