Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3456 |

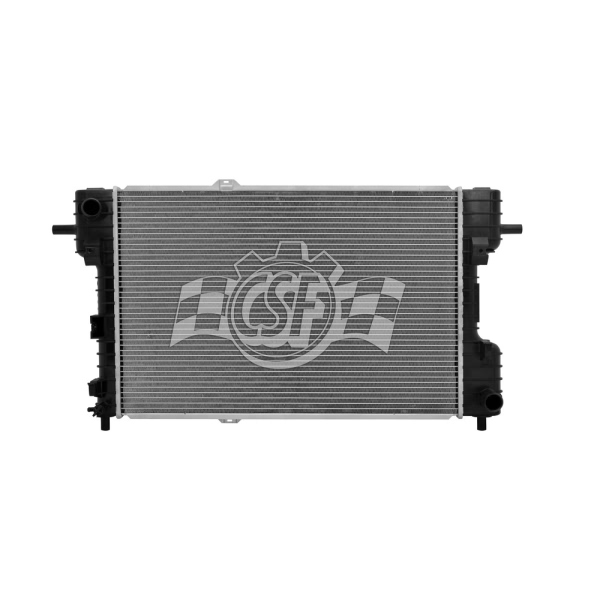

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 3/8 Right |
| Box Height (in) | 6 1/16 |
| Box Length (in) | 36 9/16 |
| Box Weight (lbs) | 10 |
| Box Width (in) | 20 13/16 |
| Core Length | 25 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 16 7/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 16 13/16 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353034569 |
| OE Part Number | 5F9Z 8005 AA, 2761, 8012761, CU2761 |
| Outlet Length(in) | 16 13/16 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 3/8 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2007 Ford Five Hundred | All Trims | 6 Cyl 3.0L |
| 2005-2007 Ford Freestyle | All Trims | 6 Cyl 3.0L |
| 2005-2007 Mercury Montego | All Trims | 6 Cyl 3.0L |
