Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3457 |

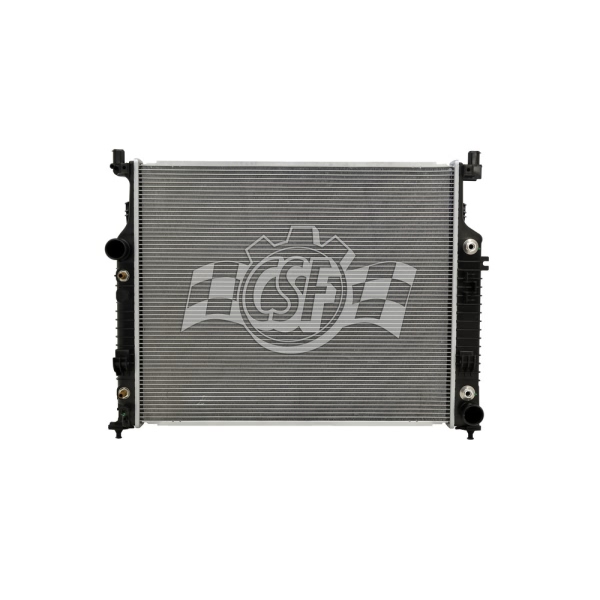

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 11/16 Right |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 32 1/4 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 26 1/8 |
| Core Length | 25 1/16 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 20 11/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 21 3/8 |
| Inlet Width (in) | 2 1/8 |
| No. Of Rows | 1 |
| UPC | 710353034576 |
| OE Part Number | 251 500 05 03, 251 500 03 03, 251 500 07 03, 13359 |
| Oil Cooler (in) | 11 13/16 (high-effeciency Plate Type);9 7/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 21 3/8 |
| Outlet Width | 2 1/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 11/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2009 Mercedes-Benz GL320 | All Trims | 6 Cyl 3.0L |
| 2010-2012 Mercedes-Benz GL350 | All Trims | 6 Cyl 3.0L |
| 2007-2012 Mercedes-Benz GL450 | All Trims | 8 Cyl 4.7L |
| 2008-2012 Mercedes-Benz GL550 | All Trims | 8 Cyl 5.5L |
| 2010-2011 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L |
| 2006-2007 Mercedes-Benz ML500 | All Trims | 8 Cyl 5.0L |
