Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3458 |

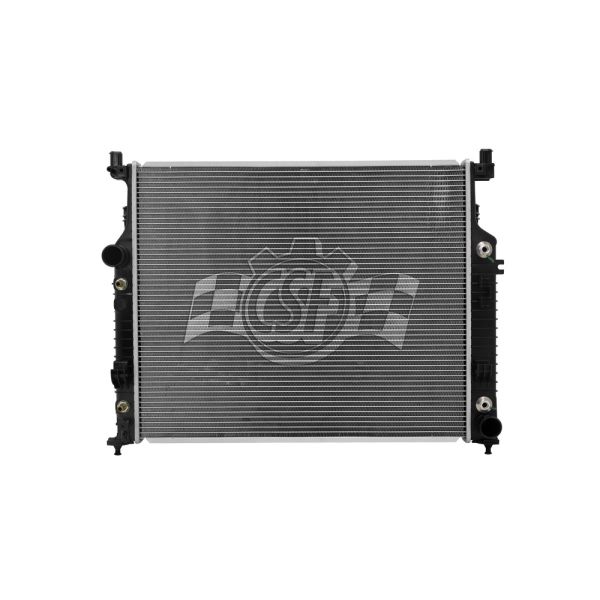

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 11/16 Right |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 32 1/4 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 26 1/8 |
| Core Length | 25 1/16 |
| Core Material | Aluminum |
| Core Thickness | 1 5/8 |
| Core Width | 20 13/16 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 21 3/8 |
| Inlet Width (in) | 2 1/8 |
| No. Of Rows | 2 |
| UPC | 710353034583 |
| OE Part Number | 8012909, 251 500 01 03, 2909, 251 500 00 03, CU2909 |
| Oil Cooler (in) | 11 13/16 (high-effeciency Plate Type);9 7/16 (high-effeciency Concentric Type) |
| Outlet Length(in) | 21 3/8 |
| Outlet Width | 2 1/8 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 11/16 Left |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2009 Mercedes-Benz ML320 | All Trims | 6 Cyl 3.0L |
| 2006-2011 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.5L |
| 2010-2011 Mercedes-Benz ML350 | All Trims | 6 Cyl 3.0L |
| 2006-2007 Mercedes-Benz ML500 | All Trims | 8 Cyl 5.0L |
| 2008-2011 Mercedes-Benz ML550 | All Trims | 8 Cyl 5.5L |
| 2007-2009 Mercedes-Benz R320 | All Trims | 6 Cyl 3.0L |
| 2006-2010 Mercedes-Benz R350 | All Trims | 6 Cyl 3.5L |
| 2010 Mercedes-Benz R350 | All Trims | 6 Cyl 3.0L |
| 2006-2008 Mercedes-Benz R500 | All Trims | 8 Cyl 5.0L |
