Vehicle Specific
Check if it fits by entering your vehicle info| Brand | CSF |
| Part Number | 3460 |

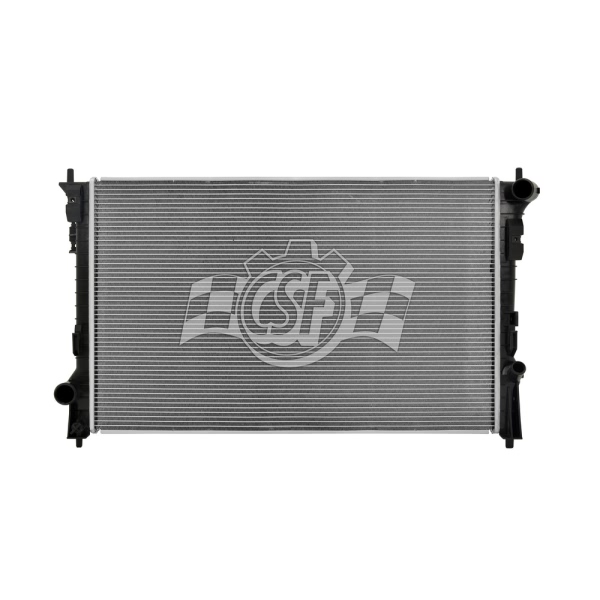

| Part Description | Engine Coolant Radiator |
| Bottom Hose Fitting (in) | 1 1/2 Left |
| Box Height (in) | 5 14/16 |
| Box Length (in) | 35 9/16 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 22 3/8 |
| Core Length | 28 3/4 |
| Core Material | Aluminum |
| Core Thickness | 7/8 |
| Core Width | 18 |
| Cross-flow/ Down-flow | Cross Flow |
| Hazardous Material | No |
| Inlet Length (in) | 18 1/16 |
| Inlet Width (in) | 1 9/16 |
| No. Of Rows | 1 |
| UPC | 710353034606 |
| OE Part Number | 7T4Z 8005 A, 2937, 8012937, DT4Z 8005A, CU2937 |
| Outlet Length(in) | 18 1/16 |
| Outlet Width | 1 9/16 |
| Radiator Cap Supplied | No |
| Tank Material | Plastic |
| Tech Note | O.E.M. style Plastic tanks & Aluminum core. |
| Top Hose Fitting (in) | 1 1/2 Right |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2014 Ford Edge | All Trims | 6 Cyl 3.5L |
| 2011-2014 Ford Edge | All Trims | 6 Cyl 3.7L |
| 2007-2010 Lincoln MKX | All Trims | 6 Cyl 3.5L |
| 2011-2015 Lincoln MKX | All Trims | 6 Cyl 3.7L |
